Lab Thin Film Coating System

Leading Manufacturers, Wholesaler, Trader and Importer of Doctor-Blade Film Coater & Screen Printing Coater, Plasma Sputtering Coater, Thermal Evaporation Coater and Magnetron Sputter Coater from Gautam Buddha Nagar.

Business Type Manufacturer, Exporter, Supplier, Importer
Brand Name NST
Certification ISO 9001:2015
Warranty 1 Years Limited Warranty With Lifetime Technical S
Model Number NST-Applicator
Compliance CE Certified
Net Weight 5 Kg
Payment Terms L/C, T/T, Western Union
Delivery Time 7 Days

Click to view more

Preferred Buyer From

Location Anywhere in India

NST Adjustable Micrometer Film Applicator with Digital Display-200mm Width



Micrometer Adjustable Film Applicator With Digital Display

  • Adjustable Film Applicator – This unique wet film applicator features micrometer heads for knife blade adjustment.
  • The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.



Features:

  • 100 mm standard width or customized width
  • Make wet film thickness between 0 – 3500 microns
  • Micrometer head’s controllable accuracy is 10 microns
  • Made of SS304 stainless steel
Read More...


Yes! I am interested


3.75 Lac - 14.75 Lac / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Brand Name NST
Material Mild Steel
Finishing Polished
Driven Type Electric
Color Blue
Condition New
Power 1-3kw
Certification ISO 9001:2015
Voltage 220V
Packaging Type Wooden Box
Specialities Rust Proof, Long Life, High Performance, Easy To Operate
Phase Single Phase
Warranty 1 Year
Country of Origin India
Weight 35 Kg
Chamber Material High Purity Quartz
Machine Operation Fully Automatic, Manual
Cooling Method Natural Cooling
Chamber Size φ180mm x 210mm
Pumping Port KF25
Payment Terms L/C, T/T, Western Union

Click to view more

Preferred Buyer From

Location Anywhere in India

This type of SMALL PLASMA SPUTTERING COATING MACHINE adopts two-stage sputtering method, which is widely used for SEM sample preparation or metal coating experiment. Using low-temperature plasma sputtering process, there is no high temperature during the coating process, and it is not easy to produce thermal damage.This small plasma sputtering coater uses PLC control system, all touch screen operation, easy to learn and use. This model machine is also equipped with a rotatable sample stage, which can effectively improve the uniformity of the coating. This small plasma sputtering instrument uses a PLC control system, all touch screen operation, easy to learn and use. The equipment is small in size and beautiful in appearance, making it the best choice for laboratory coating experiments.

Read More...


Yes! I am interested


2.50 Lac - 6.50 Lac / piece

1 Piece (MOQ)

Get Best Price
Business Type Supplier, Trader, Importer
Brand Name NST
Supply Voltage AC220V, 50Hz
Total Power 1.5 kW
Dimensions 600mm × 300mm × 470mm
Total Weight 40 Kg
Payment Terms L/C, T/T, Western Union

Preferred Buyer From

Location Anywhere in India

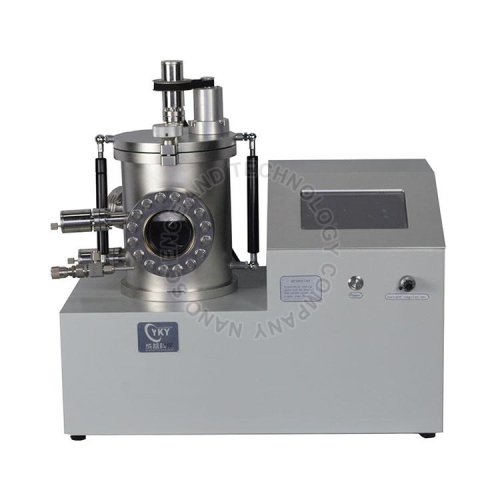

SMALL HIGH VACUUM THERMAL EVAPORATION COATER instrument is a high vacuum compact thermal evaporation coater with evaporation temperature from 200℃ to 1700℃. The tungsten wire basket is used as the evaporation source, and the evaporation source is built in at the bottom of high purity alumina crucible. The upper cover is equipped with a rotatable sample stage, which can effectively improve the uniformity of film formation. The instrument has a high-precision temperature control system and uses circulating heating method, which can stabilize the evaporation of metals and organic matter. Stainless steel high-vacuum chamber design, with high-precision molecular pump, can achieve high vacuum requirements, the high vacuum can effectively improve the efficiency and quality of the evaporation coating.



Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier
Brand Name NST
Condition New
Certification ISO 9001:2015
Purity 90%
Warranty 1 Year Warranty
Country of Origin India
vacuum Chamber Piriform Vacuum Chamber, Size: Ø450×350mm
Vacuum System Configuration Compound Molecular Pump, Mechanical Pump, Gate Valve
Ultimate Pressure ≤2.0*10-5Pa(After Baking Degassing)
Gas Circuit System 2-circuit Mass Flow Controller
Computer Control System Control Sample Rotation, Baffle Switch, Target Identification, Etc
Payment Terms L/C, T/T, Western Union

Click to view more

Preferred Buyer From

Location Anywhere in India

HIGH VACUUM MAGNETRON SPUTTERING COATER is used for the preparation of novel thin film materials such as nanometer single-layer and multi-layer functional film, hard film, metal film, semiconductor film and dielectric film. It can be widely used in the research of thin film materials and the production of small batch. It can be widely used in universities and colleges, scientific research institutes of thin film materials preparation research and small batch.

Read More...


Yes! I am interested
