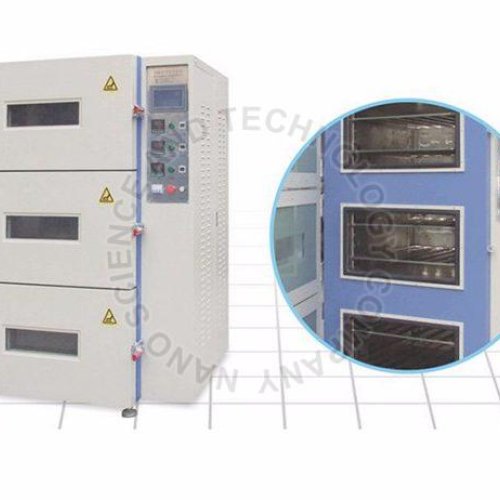

NST -ZD3A Laboratory 150C 480L Vacuum Drying Oven

1.50 Lac - 6.58 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name NST
Driven Type Electric
Condition New
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Certification
CE Certified
Packaging Type
Wooden Box
Working Temperature
RT ~150 Degree C
Phase
Three Phase
Warranty
1 Year
Country of Origin
India
Model Number
NST-ZD3A
Input Power
8 kW
Dimension(L*W*H)
1280 x 1150 x 1900 mm
Compliance
CE Certified
Working Voltage
Three Phase AC 208VAC (Three Phase AC 380V Is Available Upon Request)
Power Consumption
8 kW
Heating Rates
RT-80 Degree C, Less Than 20 Minutes (Unloaded)
Thermocouple
K Type
Net Weight
700 Kg
Application Notes
Such An Oven is An Excellent Tool for the Larger Volume of Battery Electrode Drying
Payment Terms
L/C, T/T, Western Union

150°C Larger Capacity (480L) Vacuum Drying Oven with Tri-level Shelf Heating Modules

TMAX-ZD3A is a floor stand vacuum drying/degassing/bake-out oven with large capacity. It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding system performance and quality.



Advanced Features:

  • Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications.
  • PLC control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control.
  • Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.



Structure

  • Total capacity: 480 liters (160 liters per level)
  • Inner Chamber size: W660mm x D750mm x H330mm per level
  • A good vacuum seal is achieved by silicone door gasket and positive latch door
  • Three observation windows (15mm thick temper glass), one for each level
  • High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work
  • Interior material: Stainless Steel 304 (3mm thick)
  • Exterior material: Cold rolled steel plate (2mm thick)



Temperature Controller

  • PID precise temperature controls with built-in over-temperature protection
  • Temperature uniformity: +/-2°C @ 85°C
  • Temperature Stability: +/-1°C of the setpoint



Gas Inlet/Vacuum Port

  • Features 1/4″ tube fitting for chamber purging with inert gas
  • Vacuum Port: KF-25
